Whenever we want to or have to replace the frame and interior doors, we should take appropriate measurements before purchasing the replacements to avoid problems with wrong-sized products and installation.

Frame

After removing the old frame, you have to measure the thickness of the wall underneath because this is the wall you are going to use to install the new frame. If the thickness of the wall is within the range of 90 to 95 mm, it will be suitable for any fixed (butted) frame.

https://www.invado.pl/en/product-categories/frames/

If, however, the thickness of the wall is greater than indicated above, the best solution will be to use an adjustable frame. The adjustable frame can successfully embrace a wall with non-standard dimensions. The only limit is the minimum thickness, i.e., 75 mm. There is no upper limit.

https://www.invado.pl/en/product-categories/frames/

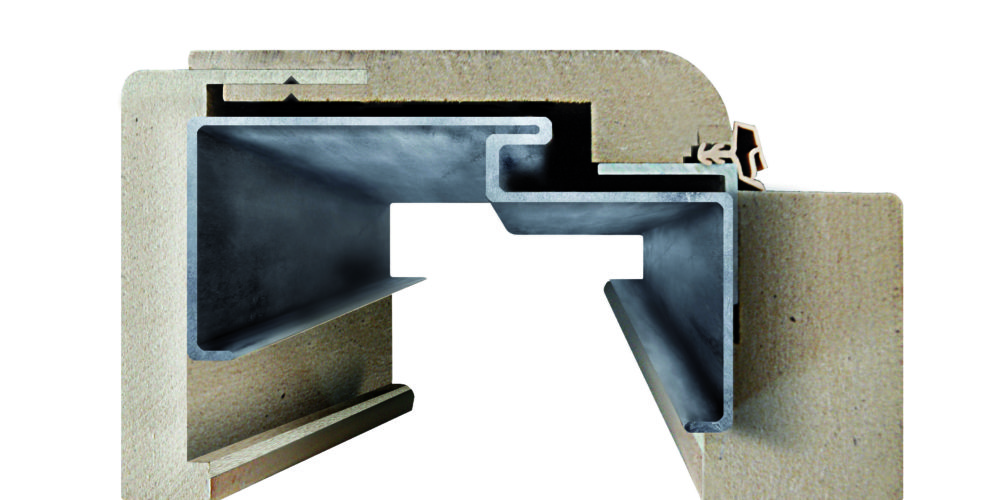

If your home has metal frames, the best solution will be to leave them intact and install a metal frame cover. This will allow you to avoid the costly and time-consuming removal of the metal frame, and the final result will be both practical and elegant. The metal frame cover is easy to install and enables the use of standard veneer door leaves of INVADO.

https://www.invado.pl/en/product-categories/frames/

To enable easy installation of the frame, the opening in the wall should be wider on each side than the outside width of the frame.

Door leaves

Once you have solved the issue of the frame, you can proceed to select the right door leaf.
The typical dimensions of interior doors are as follows: standard height of 204 cm and six available widths: 60, 70, 80, 90, 100 and 110 cm.

To see how to select the door leaf depending on the width of the opening in the wall and the frame selected during the previous step, refer to the table below. This makes everything a lot easier, doesn’t it?

Dimensions of the leaf and fixed frame

DRZWI JEDNOSKRZYDŁOWE

skrzydło

"60"

"70"

"80"

"90"

"100"

"110"

s1

644

744

844

944

1044

1144

s2

718

818

918

1018

1118

1218

s3

688

788

888

988

1088

1188

s4

600

700

800

900

1000

1100

h1

2040

h2

2084

h3

2069

h4

2025

DRZWI DWUSKRZYDŁOWE

skrzydło

"120"

"130"

"140"

"150"

"160"

"170"

"180"

"190"

"200"

s1

1264

1364

1464

1564

1664

1764

1864

1964

2064

s2

1338

1438

1538

1638

1738

1838

1938

2038

2138

s3

1308

1408

1508

1608

1708

1808

1908

2008

2108

s4

1220

1320

1420

1520

1620

1720

1820

1920

2020

h1

2040

h2

2084

h3

2069

h4

2025

Dimensions of the leaf and adjustable frame for rebated doors

DRZWI JEDNOSKRZYDŁOWE

skrzydło

"60"

"70"

"80"

"90"

"100"

"110"

s1

644

744

844

944

1044

1144

s2

674

774

874

974

1074

1174

s3

644

744

844

944

1044

1144

s4

600

700

800

900

1000

1100

s5

opaska 60 mm [ORS1]

744

844

944

1044

1144

1244

s5

opaska 80 mm [ORS8]

784

884

984

1084

1184

1284

h1

2040

h2

2062

h3

2047

h4

2025

h5

opaska 60 mm [ORS1]

2097

h5

opaska 80 mm [ORS8]

2117

DRZWI DWUSKRZYDŁOWE

skrzydło

"120"

"130"

"140"

"150"

"160"

"170"

"180"

"190"

"200"

s1

1264

1364

1464

1564

1664

1764

1864

1964

2064

s2

1294

1394

1494


1594

1694

1794

1894

1994

2094

s3

1264

1364

1464

1564

1664

1764

1864

1964

2064

s4

1220

1320

1420

1520

1620

1720

1820

1920

2020

s5

opaska 60 mm [ORS1]

1364

1464

1564

1664

1764

1864

1964

2064

2164

s5

opaska 80 mm [ORS8]

1404

1504

1604

1704

1804

1904

2004

2104

2204

h1

2040

h2

2062

h3

2047

h4

2025

h5

opaska 60 mm [ORS1]

2097

h5

opaska 80 mm [ORS8]

2117

Dimensions of the leaf and adjustable frame for non-rebated doors

For more information, download the pdf version of the INVADO catalogue (link to the catalogue).


If, however, the dimensions of your door opening and frame exceed the standard dimensions, all you can do is order a custom door.
